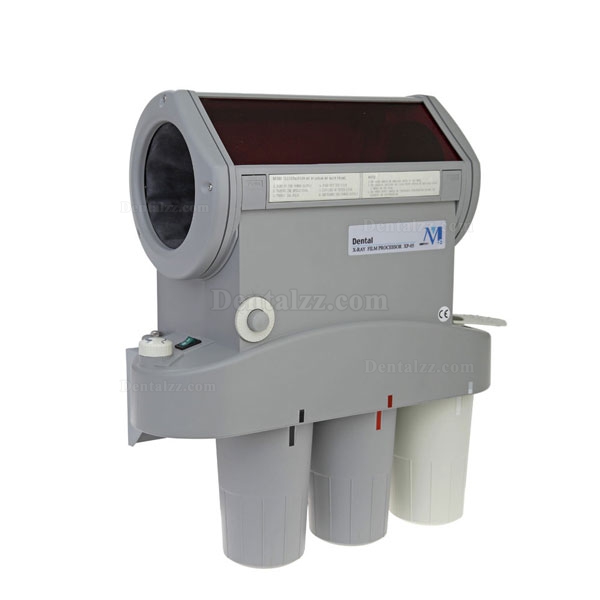

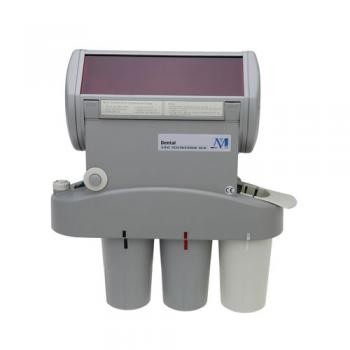

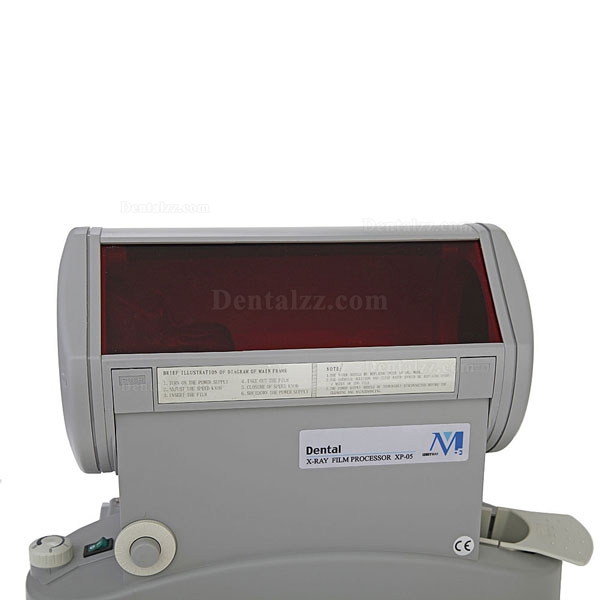

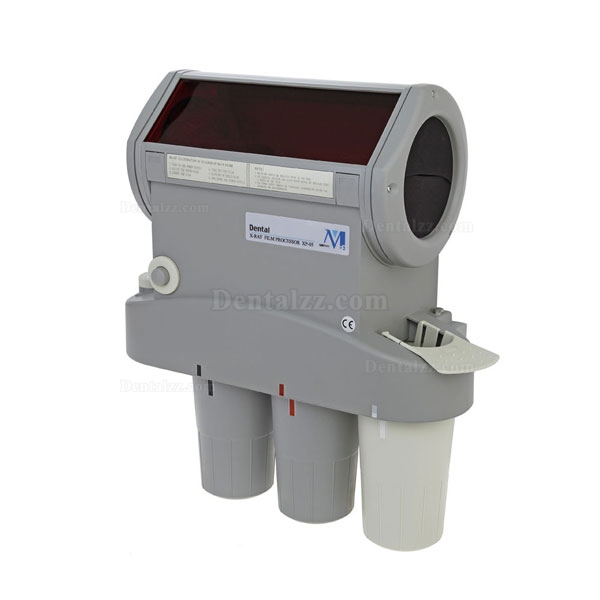

歯科医療用Ｘ線フィルム自動現像機

歯科医療用Ｘ線フィルム自動現像機

特徴

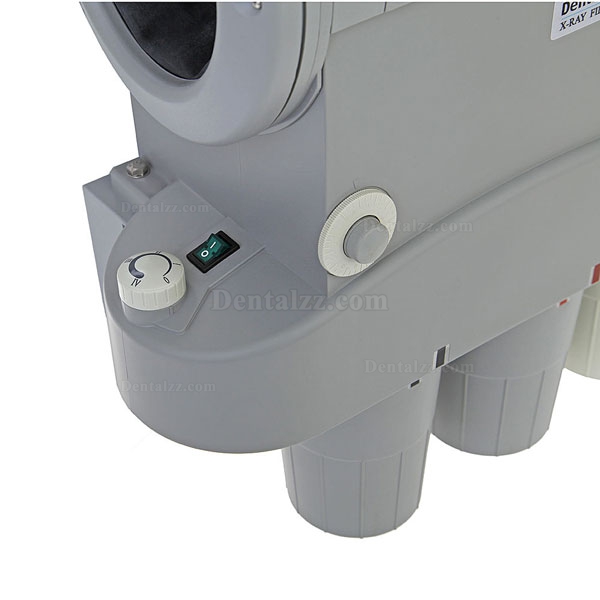

小型設計で、設置場所を選びません自動現象処理では2分～8分まで調整が可能。 誤差は±10％以内である。速度調整・温度調整がマニュアル設定により、フィルムの条件や種類に応じて自由に調整できます。

ご注意：この商品は加熱機能なしのタイプです。

Features

1. Processing time of dental x-ray film processor. The time which develops films needed is 2min-8min, and can be accommodated continuously. The error is within± 10%.

2. Light leaking. During the bathing process, light leaking is not permitted.

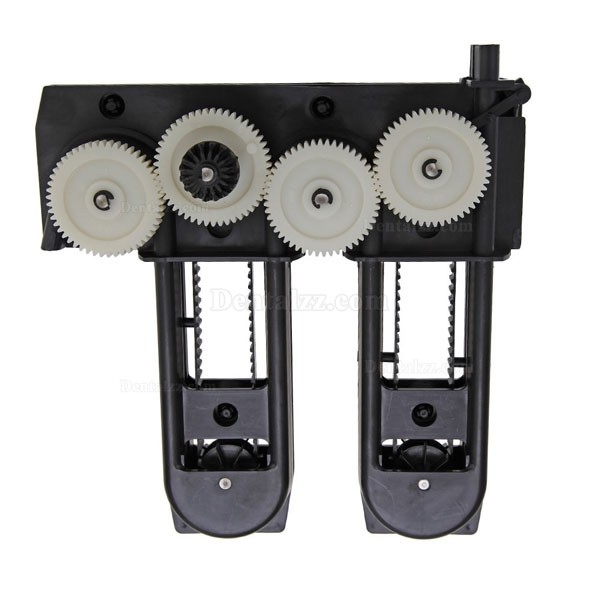

3. The stability of film delivery . The delivery mechanism of film should not lacerate or lock films.

4. The timing panel of transit film.The timing panel of transit film adopts the number 1-12 represents month, each scale represents 10 days.

Specifications

Normal working conditions:

Surroundings temperature: 18o C-30o C;

Relative humidity:≤70%;

Atmospheric pressure: 700hPa-1060hPa;

Voltage of electrical source: 220V± 10V;

Frequency of electrical source: 50Hz± 1Hz.

Surroundings of transportation and reservation:

Surroundings temperature range: -40o C-+55o C;

Relative humidity range: ≤93%

Atmospheric pressure range: 500hPa-1060hPa.
